Your own backyard has the potential to be an energy source for heating and cooling comfort.

You can take advantage of the earth’s free energy and ability to heat and cool your home or business. Sound too good to be true? That’s the beauty of geothermal heating and cooling.

With geothermal technology, which has been around and improved upon for decades now, you can tap into the earth’s constant temperatures that are in the 50s year round in Illinois. Once underground by 4-6 feet, the earth knows no season – it’s the same temperature when it’s 95 degrees in July, or -10 degrees in January. This is because the Earth absorbs heat energy from the sun, much like a solar array does. We just need to tap into this free energy source that is there for the taking.



To do it, we circulate a water-based solution through a closed loop system of piping in the ground. We use a modest amount of electricity to pump water and blow air to then move this energy from the earth. A single piece of equipment, the geothermal heat pump, then has the ability to both heat and cool your home, while providing some or all of the hot water needs as well. No fossil fuels required. Geothermal systems will typically save 505-70 percent on monthly utility bills.

Outdoor air temperatures fluctuate throughout the year with the changing seasons. In contrast, ground temperatures about four to six feet below the Earth’s surface remain relatively moderate and constant all year.

That’s because the Earth absorbs heat energy from the sun. A geothermal system circulates a water-based solution through a buried loop system to take advantage of these constant temperatures.

A single piece of equipment has the ability to heat and cool your home, while providing some or all of your home’s hot water as well. Geothermal systems can save you 30 percent to 70 percent on your monthly utility bills.

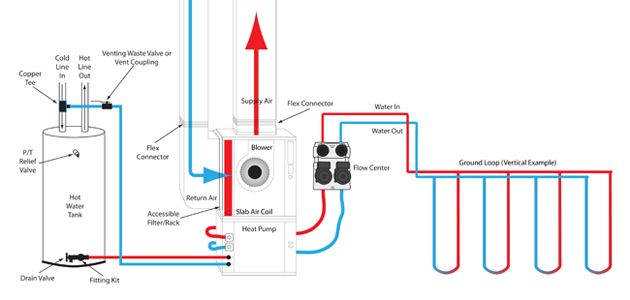

During the heating cycle, the fluid circulates through the loop extracting heat from the ground. The heat energy is transferred to the geothermal unit. The unit compresses the extracted heat to a high temperature and delivers it to your home through a normal duct system or radiant heat system.

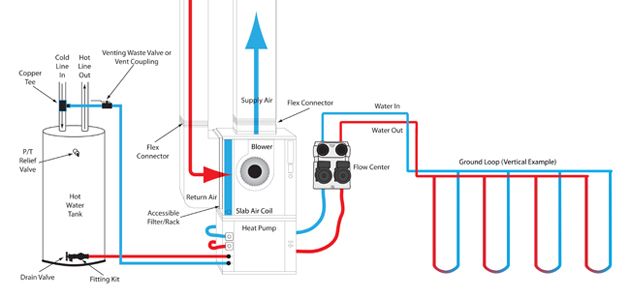

For cooling, the process is simply reversed. Because the earth is much cooler than the air temperatures on a hot day, the geothermal system removes heat from the home and deposits it into the ground. The fluid is cooled by the ground temperatures and returned to the unit for cooling your home.

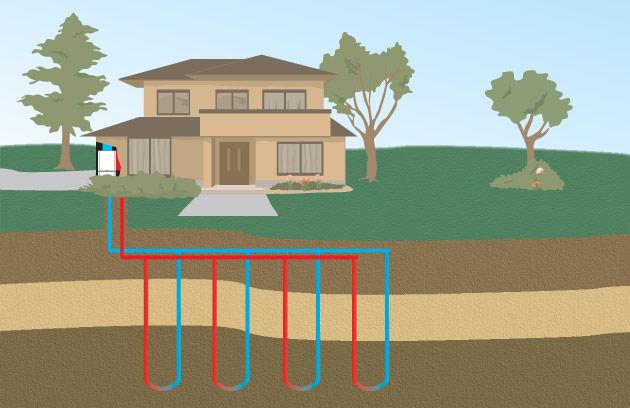

Vertical Loop

This loop is used mainly when land area is limited and in retrofit applications of existing homes. A drilling rig is used to bore holes at of depth of 150 to 200 feet. A U-shaped coil of high density pipe is inserted into the bore hole. The holes are then backfilled with a sealing grout solution.

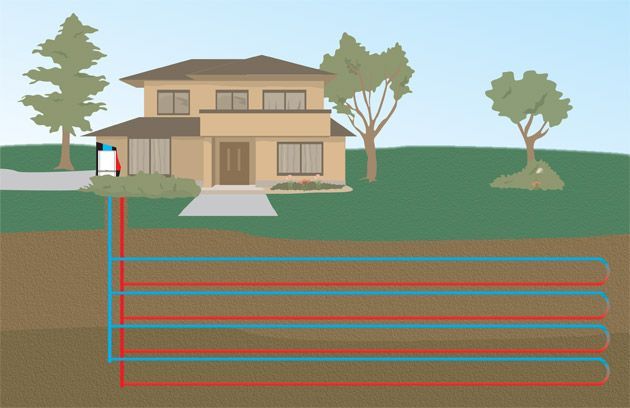

Horizontal Loop

This is the most common loop used when adequate land area is available. Loop installers use excavation equipment such as chain trenchers, backhoes and track hoes to dig trenches approximately 6-8 feet deep. Trench lengths range from 100 to 300 feet, depending on the loop design and application.

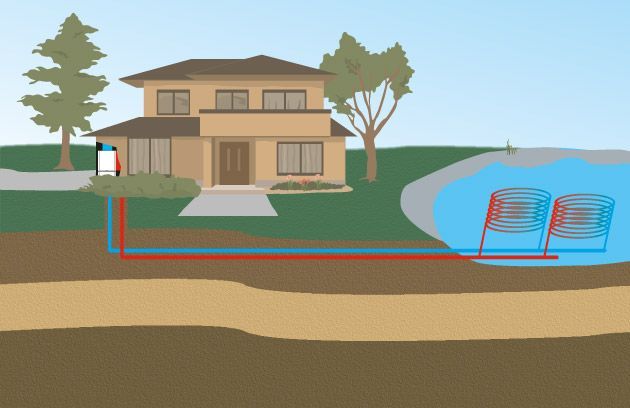

Pond Loop

A pond loop is an option if a large body of water is available within approximately 200 feet of the home. A ½ acre, 8 to 10 foot deep body of water is usually adequate to support the average home. The system uses coils of pipe typically 300 to 500 feet in length. The coils are placed in and anchored at the bottom of the body of water.

Open Loop

This system can be installed if an abundant supply of high quality well water is available. A typical home will require 4 to 8 gallons of water per minute. A proper discharge area such as a river, drainage ditch, field tile, stream, pond, or lake must be present. Check your local codes for restrictions before selecting a specific discharge method.
